Flat Metal Roof Leaking Problems Explained Simply

Proactively Identifying and Addressing Common Flat Roof Issues for Homes on the Central Coast

Although flat roofs are not yet the predominant choice in the Australian roofing market, they are certainly gaining traction among both residential and commercial buildings. This roofing style is often employed on patios, carports, walkways, and locations where low-pitch roofing is necessary. When characterised by a minimal incline, flat roofs may also be referred to as “skillion roofs.”

Flat roofs come with a myriad of benefits, yet they also present unique challenges that homeowners must be aware of. Recognising the common issues associated with flat roofing systems and implementing preventative strategies is essential, particularly on the Central Coast, where the coastal climate, heavy rainfall, and salt-laden air have the potential to exacerbate roofing complications.

What Are the Factors Driving the Increased Popularity of Flat Roofs Among Homeowners?

Flat roofs are becoming increasingly desirable in both residential and commercial construction due to several compelling factors:

• They are quicker and easier to install, enabling faster project completion timelines
• They offer improved maintenance accessibility, making routine inspections and repairs much simpler
• They provide excellent platforms for solar panel installations, thereby enhancing energy efficiency

The primary concern with flat roofs is the management of water drainage. Water is your roof's worst enemy. When planning a new roof installation or updating an existing one, it is critical to consider various factors, particularly rainfall, which varies significantly across different regions of Australia.

What Key Drainage Challenges Are Associated with Flat Roofs?

Unlike pitched roofs that facilitate rapid rainwater runoff into gutters, flat roofs feature a limited slope, which can lead to water accumulation that persists for prolonged periods. If water is not adequately channelled off the roof, it may lead to:

• Surface staining and deterioration of roofing materials
• Gradual structural weakening of roofing components over time
• Accumulation of mould and mildew, leading to health hazards
• Leaks that can infiltrate the interior spaces of the building

The solution to these challenges lies in effective roof plumbing and a thoughtful design that addresses the specific challenges posed by flat roofs.

How to Enhance Flat Roof Designs for Optimal Drainage Efficiency

Prior to installation, a qualified roofing contractor will evaluate several critical factors that influence drainage effectiveness:

• Local rainfall intensity and prevalent weather conditions
• Total roof area and specific dimensions
• Gutter configurations and efficient drainage outlets
• Specifications and dimensions of downpipes
• Options for overflow prevention to manage excessive water
• Considerations regarding roof pitch to improve drainage

Most roofing manufacturers advocate for a minimum slope of 5° for low-pitch roofs. Roofs with a slope less than this can endanger waterproofing efforts and may even void product warranties, potentially leading to costly repairs.

Standard corrugated roofing sheets may be suitable for pitched roofs but are not designed for very low-pitch applications. For flat roofs, specific roofing profiles engineered for effective water shedding are highly recommended to ensure long-lasting performance.

Examining the Top Metal Roofing Profiles for Low-Pitch and Flat Roof Applications

Two highly recommended roofing profiles for low-pitch and flat roofs are:

Trimdek: This versatile profile is ideal for both roofing and wall applications. Its 28mm rib height and specially designed capillary groove enhance water tightness, even at a minimal pitch of 2°.

Kliplok: This innovative clipped roofing profile utilises hidden clips rather than screws to secure sheets. This design effectively prevents water ingress through screw penetrations, making it a superb choice for low-pitch installations.

Choosing the proper roofing profile based on your roof pitch and local rainfall conditions is vital for guaranteeing the long-lasting performance and reliability of your roofing system.

How to Effectively Manage Box Gutters and Drainage on Flat Roofs

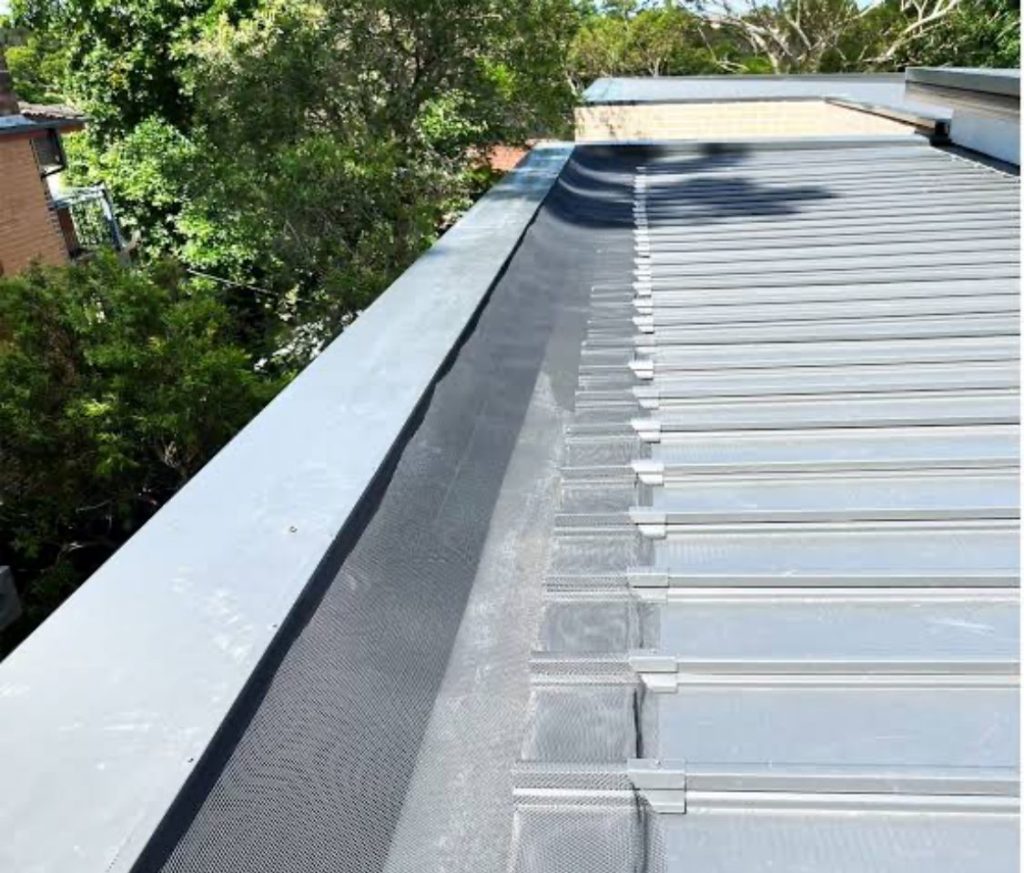

On flat roofs, box gutters are typically employed to connect roof panels to drainage outlets. Since these gutters are positioned below the roof plane, they necessitate meticulous detailing and installation to prevent blockages and water backup issues.

Challenges commonly associated with box gutters include:

• Debris accumulation from surrounding trees and foliage
• Improper fall or slope that obstructs water flow
• Overflowing back into the roof structure, resulting in leaks
• Blocked downpipes that hinder effective drainage

Addressing these challenges begins with proper gutter design and a commitment to routine maintenance to ensure optimal functionality.

What Key Considerations Should You Keep in Mind When Choosing Guttering for Your Flat Roof?

Standard gutters may not adequately manage the water flow demands of flat roofs. It is often essential to install guttering specifically designed to accommodate larger water capacities. Next, we will explore various drainage and overflow options that can be integrated into your flat metal roof design.

• Facilitate quicker water removal during heavy rainfall
• Effectively sweep debris away with high flow capabilities
• Provide easier cleaning and maintenance options for homeowners

We highly recommend self-cleaning gutter designs, perfect for flat metal roofs while also offering an aesthetically pleasing appearance!

We advocate for a half-round gutter due to its superior water-carrying capacity, allowing for expedited drainage. This design effectively sweeps away silt and sludge build-ups with each rainfall, ensuring a cleaner system over time.

For optimal performance on flat roofs, gutters should be appropriately sized based on local rainfall patterns and connected to suitably sized downpipes (for instance, 100mm × 75mm) that can handle large volumes of water. In areas with abundant trees, installing leaf diverters or guards can significantly minimise blockage issues.

How Do Flashings Contribute to Preventing Water Entry at Roof Joints?

Flashings are crucial components installed at the joints where roof sheets meet walls or other surfaces, including around skylights, chimneys, and at internal corners. On flat roofs, proper flashing installation is imperative, as water can collect around these joints if they are not properly sealed.

To effectively prevent water ingress:

• Flashings must be precisely shaped to conform to the roof profiles
• Waterproof sealants should be applied at all joints to ensure tight seals
• Extra care is needed at corners and seams where water may collect

By ensuring that flashings and sealants are installed correctly, you can achieve a water-tight roof, even during heavy rainfall. Our team takes additional precautions during installation and uses high-quality waterproof sealant to prevent water from pooling in these vulnerable areas.

Why Is Routine Maintenance Vital for the Longevity of Flat Roofs?

Flat roof systems, particularly those connected to box gutters, require regular inspections and maintenance to ensure their effectiveness. This includes:

• Clearing debris from gutters and box gutters to ensure unobstructed drainage
• Examining downpipes for any signs of potential blockages
• Inspecting roof surfaces for small cracks or areas where water may accumulate
• Re-sealing flashings as necessary to maintain waterproof integrity

Conducting routine maintenance checks can help prevent the need for extensive repairs in the future, ultimately extending the lifespan of your roofing system.

Discover the Numerous Advantages of Expertly Installed Flat Roofs

When designed and installed by skilled metal roofing professionals, flat roofs offer:

• A contemporary, sleek architectural aesthetic that boosts property value
• Optimised space for patios, decks, or utility services, maximising functionality
• Convenient access for maintenance or solar panel installation, simplifying upkeep

Moreover, flat roofs can seamlessly integrate with existing pitched roof structures when drainage and detailing are managed appropriately, enhancing both the overall functionality and aesthetic appeal of the building.

How to Ensure You Secure the Right Flat Roof Installation on the Central Coast

A well-designed and expertly installed flat metal roof can deliver both functionality and durability in the coastal environment. Whether you are embarking on a new construction project, extending a patio, or adding a carport, selecting the right roofing system and drainage design is essential for optimal performance and longevity.

Get in touch with AWS Roofing today to request a quote and secure your installation date. With another wet summer approaching, now is the ideal time to address any roofing issues and avert more significant problems in the future.

Flat Roof Frequently Asked Questions: Do Flat Roofs Face More Issues Compared to Pitched Roofs?

Flat roofs can indeed encounter greater drainage challenges if not designed appropriately. Without a suitable slope, water may pond or leak into the building structure. However, when constructed with the correct pitch, roofing profile, box gutter design, and flashing techniques, flat roofs can be just as resilient as pitched roofs.

What Is the Ideal Roof Pitch for a Flat or Low-Slope Roof?

Most roofing manufacturers suggest a minimum pitch of 5 degrees for metal flat roofs. Profiles such as Trimdek and Kliplok can effectively function at pitches as low as 2 degrees when installed correctly and properly sealed against water. Anything below 5 degrees requires careful selection of materials and detailed guttering strategies to ensure proper drainage.

Is It Feasible to Install Solar Panels on a Flat Metal Roof?

Absolutely, flat metal roofs are excellent candidates for solar panel installations. The accessible surface simplifies the installation process and enhances safety. Typically, panels are tilted on angled mounts to optimise sun exposure and prevent water from pooling underneath, ensuring efficiency in energy production.

What Exactly Are Box Gutters and Why Are They Essential on Flat Roofs?

Box gutters are internal roof gutters located below the roof line, typically found between roof sections or along parapet walls. They are commonly used on flat roofs to manage runoff effectively, but they must be carefully sized and sloped to prevent blockages and overflow issues that could compromise the roof's integrity.

Do Flat Roofs Require Special Gutters or Downpipes?

Yes, flat roofs generally require higher-capacity gutters and larger downpipes to manage effective water drainage. Half-round gutters and 100x75mm downpipes are often employed to enhance flow and prevent water accumulation. Additionally, overflow devices and leaf diverters can be beneficial in reducing maintenance needs.

What Is the Expected Lifespan of a Flat Metal Roof?

When installed correctly, equipped with adequate drainage, and maintained regularly, a flat Colorbond or Zincalume metal roof can last anywhere from 20 to 30 years or even longer. Keeping box gutters clear and resealing flashings as necessary will significantly extend the roof's lifespan and performance.
