Dedicated Circuits for Workshop Heavy Tools Usage

If you possess a shed on a rural property and are considering converting this space into a fully operational workshop, prioritising the electrical configuration is crucial.
Utilising equipment such as a MIG welder, air compressor, and table saw on the same circuit as your home can lead to significant issues, including tripped circuit breakers, flickering lights, and potentially hazardous overload conditions.

This comprehensive guide explores the essential elements of wiring a robust workshop in the rural regions of the Mid North Coast. We will discuss vital topics such as dedicated circuits, sub-boards, and the implementation of three-phase power for larger machinery. If your needs are limited to basic power requirements for your shed—such as lighting and a few outlets—please refer to our guide on Shed Wiring on Acreage for a more suitable starting point. This article specifically addresses workshops necessitating substantial power.

Understand the Importance of Dedicated Circuits for Your Workshop

Most residential properties operate multiple power points on shared circuits, which is suitable for low-power devices like kettles and televisions. complications arise when attempting to run a 32-amp MIG welder alongside an air compressor simultaneously. This combination can lead to serious electrical problems.

Consider the following issues that may occur when connecting heavy machinery to domestic circuits:

• Frequent tripped breakers — A welder drawing over 30 amps on a 20-amp circuit will trip the breaker immediately or, worse, cause the wiring to overheat before the breaker can intervene.
• Voltage drops — Extended cable runs from the main board to the shed can result in voltage sag. This situation can lead to your tools operating at elevated temperatures, reduced speeds, and deteriorating more quickly over time.
• Power disruptions in the household — Your partner might experience a power outage in the kitchen because you activated the compressor. This often leads to unwanted discussions.
• Increased fire hazards — Overloaded wiring within walls and cable runs is a leading cause of electrical fires in rural areas.

Implementing dedicated circuits effectively resolves these problems. Each heavy tool receives its own circuit, correctly sized for its load, along with its own breaker protection. This arrangement ensures that nothing is shared, preventing overloads.

Assess the Power Requirements of Common Workshop Equipment

Before your electrician can devise an effective circuit layout, it is vital to understand your equipment’s power needs. Here’s an in-depth overview of the typical power draws for common workshop tools:

• MIG welder — Requires between 15A and 32A depending on the model. Larger 240V welders are generally at the higher end. Three-phase units have distinct requirements (more on that later).
• Air compressor — Draws approximately 10A to 15A. The startup surge can be considerable—compressor motors often draw 3 to 4 times their running current for a few seconds during startup.
• Table saw — Typically consumes 10A to 15A for a quality cabinet saw. More affordable contractor saws may require less power, but you’re not looking for a budget option.
• Lathe (wood or metal) — Similar to table saws, these generally require between 10A and 15A, with metal lathes typically at the higher end.
• Dust extractor — Approximately 10A for a single-phase unit. It must operate continuously while using other tools, so it should be on its own circuit.
• Plasma cutter — Draws between 20A and 30A, similar to a welder, and also requires a dedicated circuit.

When you tally the total power draw, it becomes evident that a single 20-amp circuit from the house will not suffice. A well-equipped workshop can easily need 80 to 100+ amps across all circuits when operating at full capacity, highlighting the necessity for strategic planning.

Choose the Appropriate Circuit Breaker Size and RCD Protection for Safety

Every circuit in your workshop must feature a breaker that corresponds to the cable size and anticipated load. Your electrician will calculate this based on your equipment, but as a general guideline:

• 15A or 20A circuits — Suitable for general power points, dust extractors, lighting circuits, and lighter tools.
• 32A circuits — Essential for welders, plasma cutters, and other heavy single-phase machinery.
• Three-phase breakers — Sized according to the specific equipment requirements (details below).

RCD protection is vital. In accordance with AS/NZS 3000 (the Australian Wiring Rules), all power and lighting circuits must have RCD (safety switch) protection. This requirement is mandatory; it aims to safeguard against the high-risk nature of workshop environments.
Concrete floors, metal tools, dust, and moisture increase the likelihood of earth faults. RCDs instantly disconnect power if a current leak to earth occurs, which can mean the difference between a minor shock and a serious injury.

Typically, your electrician will implement a combination of RCDs and MCBs (miniature circuit breakers), or RCBO units that incorporate both functionalities. RCBOs are particularly beneficial in workshops because a fault on one circuit does not interrupt power to others, enhancing safety and reliability.

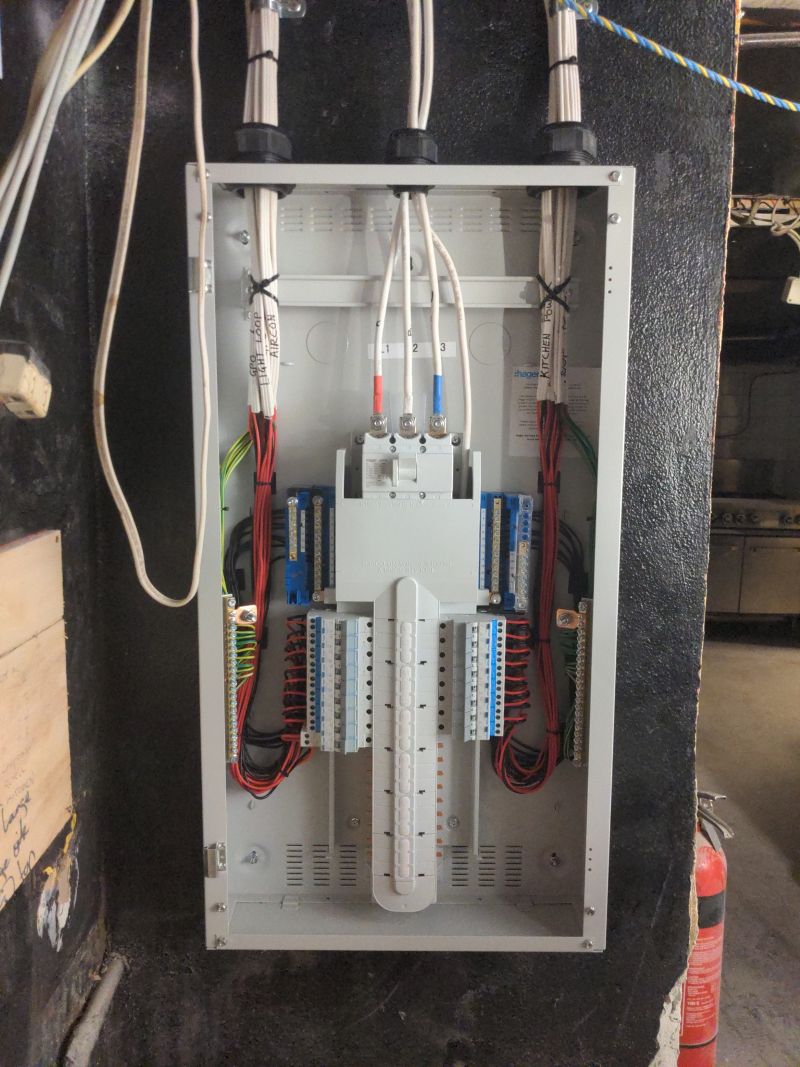

Install a Dedicated Sub-Board for Your Workshop’s Electrical Requirements

Rather than running multiple individual cables back to the main switchboard, installing a dedicated sub-board in your workshop is a more efficient approach. Here are the benefits:

• Shorter cable runs — A single heavy feed cable connects from the house (or a separate meter) to the workshop board, followed by shorter runs from the sub-board to each outlet. This configuration minimises voltage drop and reduces cable costs.
• Simplified fault diagnosis — Each circuit is clearly labelled and easily accessible in the workshop. If a breaker trips, you won’t need to return to the house to reset it, saving both time and effort.
• Future expansion — A properly sized sub-board allows for the addition of circuits in the future, making it straightforward to incorporate new tools as your workshop develops.
• Isolation capability — You can turn off all workshop power from a single main switch without affecting the electricity supply to the house, enhancing safety during maintenance tasks.

If your house switchboard is outdated or operating at full capacity, an upgrade may be necessary before effectively powering the workshop sub-board. Older ceramic fuse boards may not safely accommodate the increased load.

A typical workshop sub-board setup includes a main switch, individual RCBOs for each circuit, a dedicated lighting circuit, and a surge protection device. We will size the incoming feed cable based on the total expected load plus a buffer for future additions, ensuring optimal performance and safety.

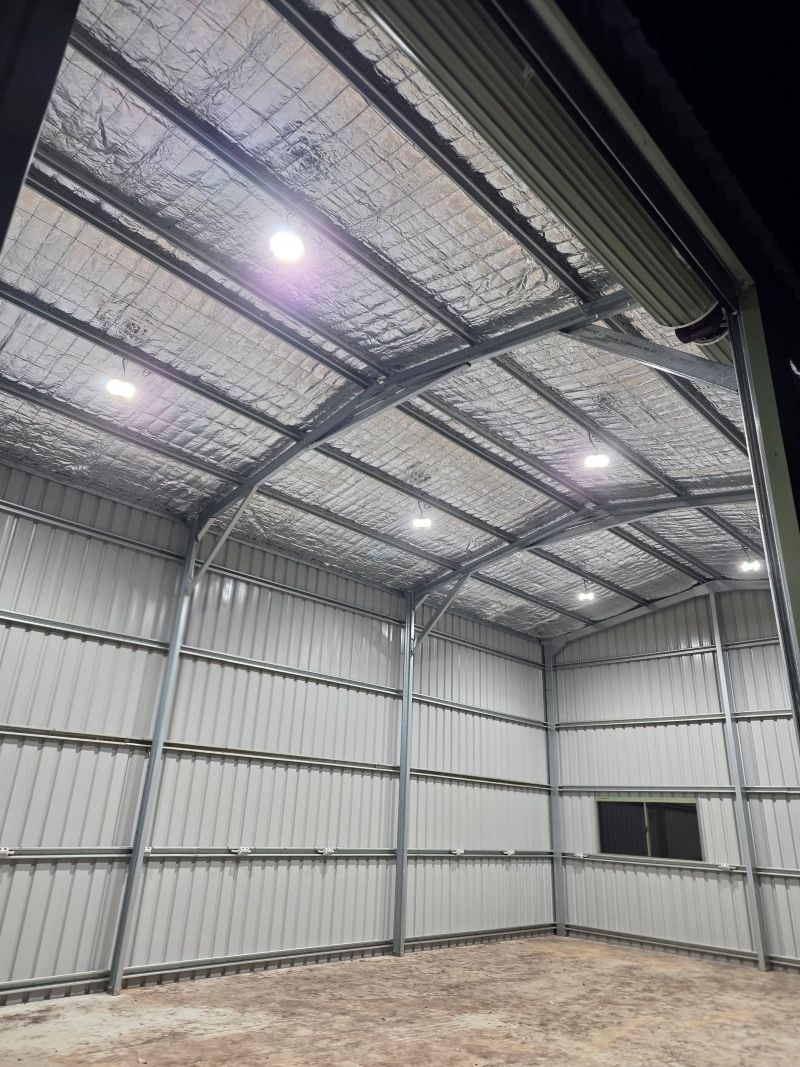

Ensure Your Workshop Is Well-Lit for Safety and Efficiency

Adequate lighting is essential for safety in your workshop. It is crucial to have clear visibility of your work, especially around sharp blades and hot materials. Here are some key lighting considerations:

• High-lumen LED battens — LED panels or battens provide bright, even illumination throughout the space. Aim for a minimum of 500 lux at bench height to ensure clarity.
• Dust-proof fittings — Standard lights can become obstructed by sawdust and metal shavings. Opt for IP-rated fittings that resist dust and moisture for durability and safety.
• Task lighting at workstations — While overhead lighting provides general illumination, targeted lighting at the workbench, lathe, and drill press is vital for precision work and safety.
• Separate lighting circuit — The lighting should operate on its own circuit, ensuring that you still have light if a power circuit trips. Being left in darkness next to a running table saw poses a significant safety risk.

We possess extensive experience with lighting layouts in commercial spaces. Our team can assist you in designing a workshop lighting plan that greatly enhances your working environment and safety.

Plan for Efficient Ventilation and Dust Extraction Circuits

When engaging in activities such as woodworking or welding, ensuring adequate ventilation is as vital as having sufficient power. Dust extraction systems and exhaust fans require their own dedicated circuits because:

• Continuous operation — Your dust extractor must run whenever you’re cutting. It cannot share a circuit with the tool it serves, as this compromises both efficiency and safety.
• Motor startup loads — Dust extraction fans and collectors experience significant startup surges, akin to compressors, which necessitate dedicated circuits.
• Interlocked switching — In an optimally designed workshop, the dust extractor can be wired to activate automatically when specific tools are powered on. This requires careful circuit design to ensure functionality.

Plan for at least one dedicated 15A circuit for dust extraction and another for general ventilation. If you’re employing a cyclone-style dust collection system, it may require a 20A circuit based on motor specifications, ensuring efficiency and effectiveness in maintaining air quality.

Leverage Three-Phase Power for Enhanced Heavy Equipment Efficiency

When engaging in intensive metalwork or operating large compressors (5HP+) or commercial-grade woodworking machinery, single-phase power may become inadequate. Three-phase power offers several advantages:

• Increased power capacity — Three-phase motors are more efficient and deliver greater power without the excessive startup surges associated with single-phase motors.
• Support for larger welders and plasma cutters — Industrial MIG/TIG welders and CNC plasma tables typically function on three-phase power for optimal performance.
• Smoother operation — Three-phase motors operate more smoothly and run cooler, extending the lifespan of your tools and machinery.

Accessing three-phase power in rural areas of the Mid North Coast depends on availability at the street level. Some properties may already have a three-phase supply, while others may require a phase converter or a new connection from Essential Energy.
For further details, please refer to our guide on Do I Need Three-Phase Power on My Property?

If three-phase power is accessible, your workshop will need the installation of a three-phase switchboard with appropriately rated breakers and an effective earthing system to ensure safety and reliability.

Implement Surge Protection to Shield Your Equipment

Tools featuring electronic controls, variable frequency drives (VFDs), digital displays, and inverter welders are susceptible to voltage spikes. Notably, your workshop generates surges each time a large motor starts or stops. Coupled with the voltage instabilities often found in rural power lines, your valuable equipment is at risk.

Installing a surge protection device (SPD) at the sub-board can intercept voltage spikes before they impact your tools. This is a cost-effective measure compared to replacing the electronic components of a $3,000 welder or a CNC controller, safeguarding your investment.

If your property is prone to storms (which is common on the Mid North Coast), we recommend incorporating surge protection at the main switchboard to guard against lightning-induced surges that could damage your equipment.

For properties that rely on a generator for backup power, integrating a generator changeover switch ensures smooth transitions between mains power and generator supply without risking back-feeding or damaging connected equipment, providing peace of mind during power outages.

Consider Additional Features for Your Workshop Fit-Out

Here are a few more features to integrate into your workshop wiring from the beginning:

• Ample power points — Install more power points and switches than you anticipate needing. Use weatherproof GPOs if the workshop is open-sided, ensuring durability. Consider double power points at every bench and outlets at key machinery locations to enhance accessibility.
• Data and communications — If you require internet access for streaming music, operating a CNC machine, or monitoring security cameras, plan for data and TV wiring concurrently with the electrical setup. It is significantly easier to run cables during the initial fit-out than after the walls are finished, preventing future complications.
• External lighting — Incorporate floodlights outside the workshop to facilitate access during early mornings and late evenings, particularly in rural areas lacking street lighting, enhancing safety.
• EV or equipment charging — If you’re utilising electric equipment (battery-powered tools, an electric vehicle, or an electric quad bike), implement a dedicated charging circuit to prevent overloads on general outlets, ensuring efficient operation of all devices.

Accurately Estimate the Cost of Your Workshop Electrical Fit-Out

Cost estimates will vary based on the workshop size, the number of circuits required, and whether three-phase power is necessary. As a rough guideline for the Mid North Coast:

• Basic single-phase setup (sub-board, 4–6 circuits, lighting) — Starting from £5,000, providing essential electrical support.
• Complete dedicated sub-board (8–12 circuits, multiple heavy tool circuits, dust extraction, comprehensive lighting design) — Starting from £10,000, ensuring ample capacity for serious workshop needs.
• Three-phase workshop build (three-phase supply, dedicated board, heavy equipment circuits, complete fit-out) — Starting from £15,000+, accommodating extensive power requirements.

These figures represent starting points. Complex layouts, lengthy cable runs from the mains, or the necessity for upgrades from Essential Energy will increase costs. We provide transparent quotes based on your specific workshop and equipment needs—no hidden fees, ensuring you know exactly what to expect.

Crucial Reminder: All Electrical Work Must Be Conducted by Licensed Professionals

This is an essential point. In New South Wales, all electrical wiring work must be performed by a licensed electrician. This includes the installation of new circuits, sub-boards, power points, and the connection of equipment. There is no DIY exemption for electrical work, even on your own property, to ensure safety and compliance.

Hack-It Electrical Solutions holds NSW Electrical Contractor Licence #230609C. We operate throughout Bellingen, Coffs Harbour, Sawtell, Nambucca Heads, Woolgoolga, Urunga, Dorrigo, Valla Beach, and Toormina, ensuring quality service.

Engaging in unlicensed electrical work can void your insurance, create significant safety hazards, and lead to fines. If someone offers to do the work cheaply without a licence, it’s not a saving—it’s a risk that can have serious consequences.

Resolve Your Common Queries About Workshop Electrical Requirements

Can I Operate My Welder from a Standard Power Point?

Small stick welders (up to around 140A output) can be used with a standard 10A or 15A power point. Any larger units necessitate a dedicated circuit. A MIG welder with a capacity of 200A or more connected to a 10-amp GPO will trip the breaker immediately—or potentially cause the wiring to overheat if the breaker is faulty. If you regularly weld, it’s crucial to have a dedicated 32A circuit installed to ensure safe operation.

How Many Circuits Are Typically Required in a Workshop?

The number of circuits required depends on your tools, but a well-equipped workshop generally needs a minimum of 8 to 12 circuits. This includes dedicated circuits for each heavy tool (welder, compressor, plasma cutter), general power point circuits, dust extraction, lighting, as well as a couple of spares for future additions. We tailor the design based on your specific equipment list, ensuring you have everything you need.

Is Three-Phase Power Necessary for a Home Workshop?

Not necessarily. Most home workshops function adequately on single-phase power with dedicated circuits. Three-phase power is only required if you are using commercial-grade equipment, such as large compressors (5HP+), three-phase welders, or CNC machines. Check out our complete guide on Do I Need Three-Phase Power on My Property? to determine if it suits your needs, ensuring you make an informed decision.

Can My Existing Switchboard Support a Workshop?

It’s possible. If your house switchboard is modern and has spare capacity, we can often connect a workshop sub-board to it. if it consists of an outdated ceramic fuse board or is fully loaded, an upgrade will be necessary before proceeding. We will evaluate this during the quoting process to ensure everything is up to code.

What Is the Typical Duration for a Workshop Electrical Fit-Out?

A basic single-phase setup can typically be completed within 1 to 2 days. A full fit-out encompassing multiple heavy circuits, three-phase power, and comprehensive lighting usually takes 3 to 5 days, depending on the complexity and cable run distances. We will provide a timeline along with your quote, ensuring you know what to expect.

Ensure Your Workshop Is Properly Wired for Safety and Efficiency

If you are establishing a workshop on your property and want to ensure it is done correctly from the outset, reach out to us. We will visit your site, assess your space and equipment list, and develop a plan that meets your power requirements without compromising safety or quality, ensuring a successful workshop setup.
