French Drain Solutions for Runoff Management in Shellharbour

Addressing Water Ingress Issues in Shellharbour

A homeowner in Shellharbour faced a significant and escalating issue with water ingress. Water from two higher-elevation neighbouring properties started to flow into the yard and seep beneath the foundation. This water intrusion caused damage to the flooring, encouraged rising damp, and resulted in mould growth inside the house, threatening recent renovations.

What Steps Can You Take to Identify the Source of Water Intrusion?

The problem stemmed from both surface runoff and subsurface water flowing downhill from the back and side yards of adjacent properties. Without sufficient drainage to manage this influx, the water inevitably travelled beneath the house.

How to Create an Efficient Drainage System

CS Plumbing designed and installed a gravity-fed French drain system specifically aimed at capturing and redirecting water before it could reach the home's foundation.

The project included several vital components:

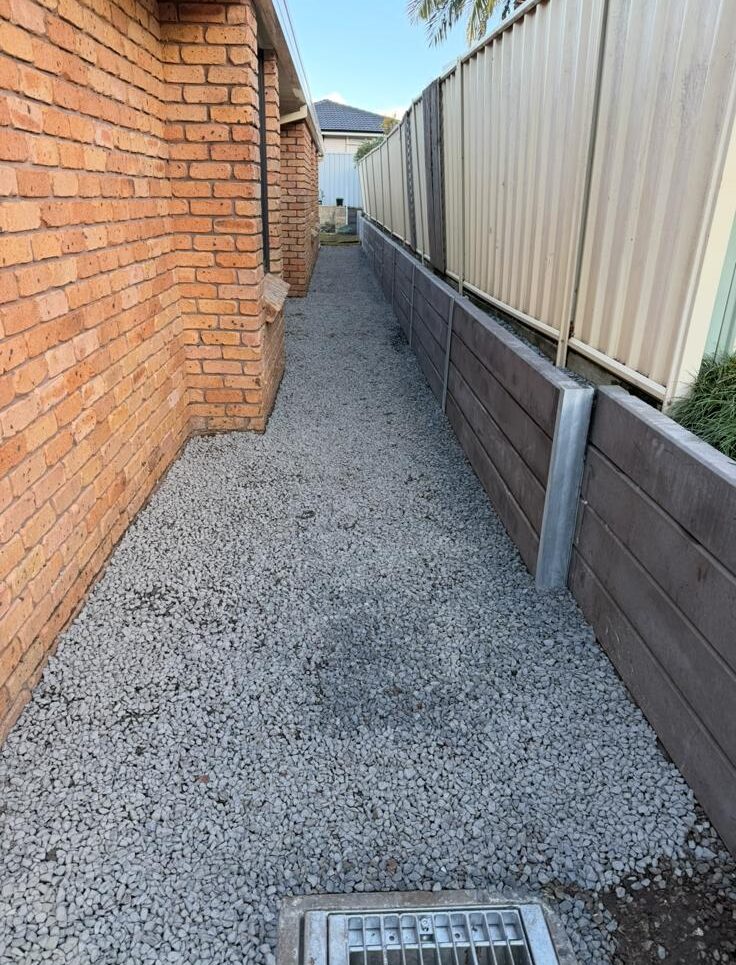

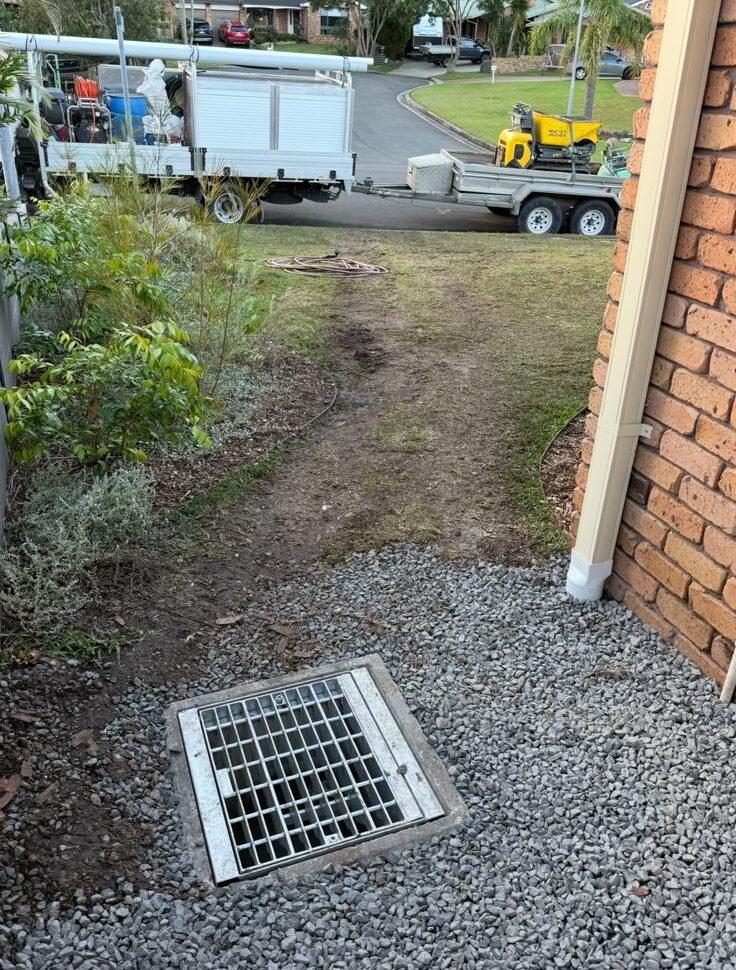

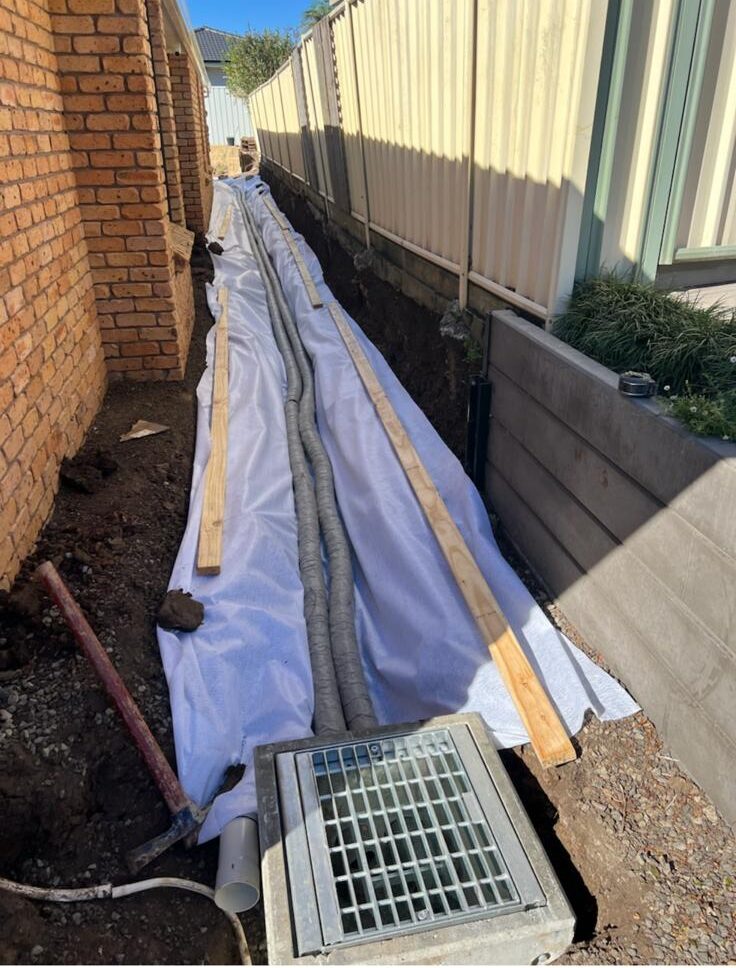

• A French drain system designed to collect both surface and subsurface water from neighbouring properties, channelling it via gravity to a concrete pit.
• A 100mm PVC pipe extending from the pit to the curb, equipped with strategically drilled holes in the curb to ensure optimal discharge.
• Three new, larger-diameter Colorbond metal downpipes replacing the original smaller versions, connected to new 100mm PVC piping leading to the curb.
• A retaining wall system constructed along the boundary using concrete sleepers and galvanised steel posts, with auger holes drilled using an excavator to create a sturdy barrier against the adjacent yard.

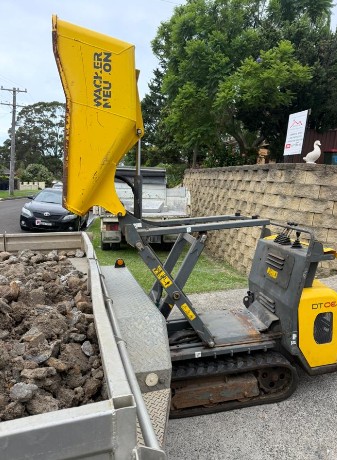

• Efficient on-site soil removal conducted using a dumper for effective site management.

What Are the Key Benefits of Effective Water Management?

The newly implemented system now efficiently captures surface and subsurface water at the property boundary, ensuring it is redirected away from the home. The homeowner has achieved a robust, low-maintenance solution that safeguards their foundation, flooring, and investment in renovations.
