Restoring Quarry Tile Floors for Enhanced Breathability and Brightness

What distinguishes quarry tiles from other flooring options?

Understanding the Significance of the Clay Composition

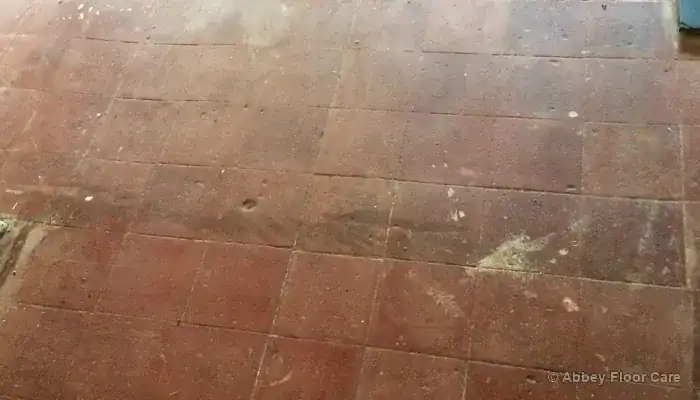

Quarry tiles are made from dense, unglazed clay that undergoes high-temperature firing, resulting in a robust surface that actively manages moisture without any protective glaze. Unlike ceramic or porcelain tiles, quarry tiles lack a sealing glaze, making the clay body vulnerable to foot traffic, cleaning agents, and moisture from the outset. This ongoing cycle of moisture absorption and release is integral to their design.

The clay composition consists of fine mineral particles interspersed with voids, allowing moisture vapour to pass through. This mechanism enables water vapour to ascend from the subfloor, traverse the tile, and evaporate at the surface. In many historic UK homes, quarry tiles are laid directly on lime or compacted earth bases, often without a damp-proof membrane, thus promoting continuous and intentional moisture movement. Sealing this pathway disrupts the tile’s natural function rather than providing protection.

The Importance of the Firing Process

The temperature at which quarry tiles are fired directly affects their final density, colour, and porosity. Tiles fired at lower temperatures produce softer, more porous materials that readily absorb liquids, commonly found in older Victorian and Edwardian homes. Conversely, tiles fired at higher temperatures yield denser structures with tighter voids, enhancing their resistance to liquid absorption while remaining unglazed and moisture-active. Both types fundamentally differ from glazed or polished flooring options.

This production method ensures that the colour of quarry tiles is inherent to their structure, extending through the clay body rather than merely coating the surface. the colour cannot be scrubbed away like a painted finish. Over time, the surface texture may change due to wear, resulting in colour alterations as contaminants accumulate within the tile. A floor that consistently appears dark likely conceals ingrained contamination rather than showcasing its original clay colour.

The Implications of Not Having a Glaze

Glazed tiles possess a glass-like coating that repels liquids, resists stains, and facilitates easy cleaning by keeping dirt on the surface. Quarry tiles, however, lack this protective layer; their open clay surface allows liquids to infiltrate directly. Grease, cleaning residues, soil, and water permeate the tile body instead of remaining on the surface. Over time, these substances accumulate beneath the surface, making standard surface cleaning ineffective.

This explains why the typical cleaning method — applying a product, mopping, and rinsing — consistently yields subpar results on quarry tiles. Cleaning agents only target residues on the surface while deeper layers of contamination remain. A floor cleaned diligently for years can still retain decades of ingrained contamination, as conventional cleaning solutions do not penetrate deeply enough to eliminate it. Recognising the necessity for professional deep cleaning is crucial for effective maintenance of these floors.

This quarry tile hub provides extensive insights into the entire lifecycle of these floors, from quarry tile basics to cleaning, restoration, and sealing guidelines for all conditions.

The Function of Moisture Vapour Transmission and the Hazards of Blocking It

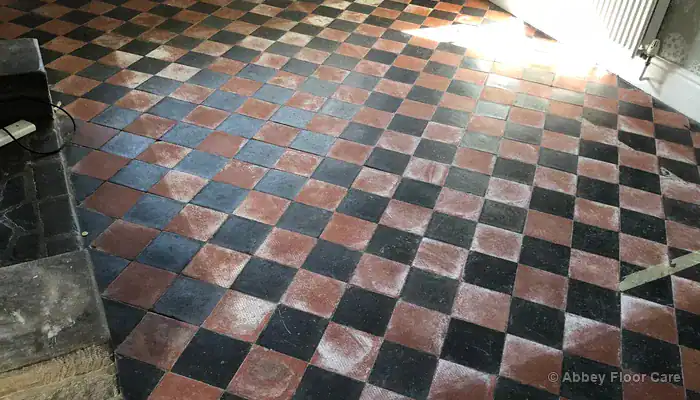

Moisture vapour transmission refers to the continual movement of water vapour through the subfloor, tile, and into the living space. In a properly functioning quarry tile floor, this process occurs invisibly and without causing damage. The floor breathes efficiently, maintaining stability while salts carried by moisture either evaporate harmlessly at the surface or disperse through the open clay structure.

When moisture transmission is obstructed, often due to a film-forming sealer that blocks the tile's pores, moisture accumulates beneath the surface. This buildup can lead to blistering, peeling, or discolouration. Salts deposited from trapped moisture create white crystalline deposits known as efflorescence. Additional cleaning efforts cannot resolve this issue; the core problem lies in the obstructed breathability, necessitating the removal of the coating to restore the tile's moisture movement.

Identifying Ingrained Contamination and Its Concealed Accumulation

Embedded contamination comprises grease, soil, organic matter, and residues that have infiltrated the clay body over years of use. Unlike recent spills, this contamination isn’t visible on the surface. Instead, it presents as general darkening, persistent dullness, or a floor that never appears clean despite cleaning efforts. Heavily contaminated floors may feel slightly sticky due to old wax and grease residues trapped in the upper layers of the clay body.

This accumulation occurs gradually and often goes unnoticed. Every meal prepared, every muddy shoe, and every application of general cleaning product contributes a bit of residue absorbed by the tile. Over a decade or two, this leads to a layer of contamination that cannot be removed by surface cleaning products. Addressing it requires specialised chemistry that penetrates into the clay body, typically through controlled alkaline cleaning with wet vacuum extraction, targeting the contamination directly rather than only treating the surface.

Why does the surface remain dirty even after cleaning?

If your quarry tile floor appears dirty after mopping, it is likely because the contamination has infiltrated the clay body itself. This is when conventional cleaning methods cease to yield visible results, and continuing to use the same techniques will not alter the outcome. The floor isn’t unresponsive due to irreparability; it is unresponsive because the cleaning efforts are targeting the wrong layer.

Residue cycling occurs when each cleaning session disturbs surface contamination without actually removing the embedded layer. The floor may look cleaner right after mopping, but it returns to its dull state within hours as the surface dries and the underlying layer re-emerges. This cycle can perpetuate for years without improving the underlying condition. The deep cleaning process for quarry tiles effectively addresses the embedded layer rather than repeatedly treating the surface, leading to immediate and lasting improvements.

What causes the variation in appearance of quarry tiles in different homes?

Repetitive cleaning that yields no visible results does not indicate a failure in technique; it signifies that soil has already penetrated below the surface layer. To diagnose this issue, it is essential to understand why two quarry tile floors in similar conditions can exhibit drastically different appearances. Variations in manufacturing significantly affect both the appearance and performance of the tiles.

Quarry tiles fired at higher temperatures result in denser materials with tighter clay structures. These tiles are slower to absorb liquid, maintain their colour under foot traffic more consistently, and resist surface abrasion better over time. Conversely, tiles fired at lower temperatures tend to have a more open structure, absorb liquids more readily, and show signs of embedded contamination sooner. Both types remain unglazed and moisture-active, but the speed at which issues arise varies considerably.

Why does dirt penetrate the tile instead of remaining on the surface?

Capillary action is responsible for drawing grease and soil into a quarry tile rather than allowing them to rest on the surface. The open clay structure facilitates the inward movement of liquid contamination under regular foot traffic. Each step applies pressure that forces liquid residues into the surface voids. Grease from cooking, soil tracked in on shoes, and residues from cleaning products all enter the tile body through this process. Once inside, they become inaccessible to surface cleaning.

Over time, the voids in the upper clay layers become increasingly filled. The tile darkens from within, and residue cycling begins — each cleaning disrupts surface contamination but fails to reach the underlying layers. The floor becomes slower to absorb new contamination as the upper voids fill, but the existing embedded layer does not diminish without targeted intervention.

The practical implication is that cleaning frequency alone cannot compensate for insufficient cleaning depth. A floor cleaned daily with a general-purpose product may still develop a significant embedded contamination layer over five to ten years. The maintenance routine that prevents this issue involves using correctly formulated pH-neutral cleaning solutions, avoiding detergents that leave their own residues, and removing grit before wet mopping to reduce surface abrasion and contamination issues.

Why do commonly used cleaning products become less effective over time?

If your regular floor cleaner was effective for the first year or two but now seems to lack impact, it’s likely that the contamination layer has moved beyond the reach of surface-acting products. General-purpose floor cleaners are designed to address residues at or near the surface and are not formulated to penetrate the porous clay body to lift long-standing contamination. Once contamination is embedded, these products only maintain surface cleanliness without resolving the underlying problems.

Many household cleaners also leave behind their own residues — surfactants, fragrances, and pH-adjusting agents that the tile absorbs alongside the soil they aim to eliminate. This accelerates the residue cycling process and can lead to a surface that feels slightly sticky or appears consistently dull, regardless of recent cleaning. The chemistry needed to penetrate the clay body, rather than just the surface, employs controlled alkaline concentrations, mechanical agitation, and wet extraction — a process that general-purpose products are neither designed nor intended to replicate.

How can the wrong sealer negatively impact your floor?

Applying a film-forming sealer to a moisture-active quarry tile floor does not provide protection; it traps the moisture that the floor needs to release. Film-forming products create a physical barrier across the tile's pores. While they may be suitable for contemporary glazed tiles, this approach is detrimental for unglazed quarry tiles situated on a moisture-active base, leading to sealer failure, efflorescence, and accelerated deterioration.

Effectively sealing a quarry tile floor involves facilitating moisture movement rather than obstructing it.

The progression of breathability failure follows a predictable pattern. Initially, the sealer may seem effective. Within months, moisture vapour accumulating beneath the coating leads to blistering or milky patches. The coating may peel or deteriorate unevenly. Salts from trapped moisture create white crystalline patches on the surface. Homeowners often clean the floor again, frequently applying more product, exacerbating the issue. Throughout this process, the tile remains undamaged; however, restoring proper moisture vapour transmission necessitates professional intervention. An impregnating sealer, which penetrates the tile body instead of resting on top, allows moisture to move while safeguarding the internal structure from further contamination.

What signs indicate that quarry tile floors are deteriorating?

White powder on the tile surface, inconsistent finishes that return after cleaning, and coatings that peel without clear explanation are interconnected symptoms of the same underlying issue. Each of these indicates a specific stage of deterioration, and recognising these signs is crucial for understanding the floor's condition.

Efflorescence, the white crystalline or powdery deposit that forms when moisture carries dissolved salts to the surface, signifies active moisture movement. This often suggests that something above — whether a surface coating or incompatible sealer — is obstructing the evaporation pathway. Homeowners notice a chalky white residue that reappears shortly after cleaning.

Salt migration produces a similar visible effect but occurs deeper within the tile, depositing mineral compounds inside the clay structure rather than on the surface. Over time, this causes the tile surface to appear progressively lighter in affected areas. Sealer failure can be identified through peeling, mottling, or uneven sheen, indicating areas where the coating has separated from the tile.

What maintenance is essential for maintaining quarry tile floors?

If your quarry tile floor has undergone professional restoration, the subsequent maintenance routine will determine whether it remains in excellent condition or begins to deteriorate within months. The most critical factor is using a pH-neutral cleaner specifically formulated for breathable natural tiles — avoiding general-purpose products and any cleaners containing bleach, vinegar, or surfactant residues that the tile will absorb. Selecting the wrong product can reactivate the residue cycling process from the outset.

Equally important is removing grit before wet mopping. Hard particles of sand and soil tracked indoors act as fine abrasives underfoot, accelerating surface abrasion in the upper clay layer. Dry sweeping or vacuuming before any wet cleaning helps prevent this. Resealing at appropriate intervals, typically every two to three years for an impregnating sealer depending on foot traffic, maintains internal protection without causing surface residue buildup.

When is maintenance insufficient for your floor's needs?

Persistent darkening that does not improve with suitable cleaning products, white salts that return soon after removal, and coatings that repeatedly fail indicate that the floor requires professional evaluation rather than continued maintenance.

Use the following sequence to assess your floor's current state:

1. Clean the floor with a properly formulated pH-neutral product and allow it to dry thoroughly. If the darkening reappears within 48 hours and the floor appears unchanged after cleaning, the contamination is embedded beneath the surface.
2. After removing any visible white deposits, check whether they reappear within a week. Rapid reappearance indicates active moisture movement combined with a blocked or partially obstructed evaporation pathway — this signals a sealer failure condition rather than a cleaning issue.
3. Inspect any coatings applied within the last two years. If the coating has begun to peel, mottle, or exhibit an uneven sheen in high-traffic areas, the product was likely incompatible with the floor's moisture movement profile, necessitating professional removal before further treatment.

What steps should you take based on your floor's condition?

Every issue with quarry tiles points to a specific aspect of the restoration system, and the appropriate starting point depends on the current state of the floor.

If the floor appears dirty after cleaning and the issue persists, begin with the deep cleaning process: deep cleaning quarry tiles to eliminate decades of grime outlines the complete procedure. If the floor shows white deposits, inconsistent finishes, or failing coatings, follow the restoration pathway: quarry tile restoration details the professional remediation process.
