Shed Wiring Tips for Electricians on Rural Properties

If you have a shed situated on acreage and are tired of managing extension cords connecting to your home, it becomes vital to ensure that your shed is correctly wired for power. Whether you require a simple storage shed with just a light and a power point, or if you need a fully equipped workshop featuring welders and compressors, following the proper procedures is absolutely essential. In NSW, the only legitimate way to accomplish this task is by engaging a licensed electrician.

This extensive guide lays out the necessary steps to supply electricity to your shed, detailing the requirements your electrician will need for installation and offering a cost estimate specifically for the Mid North Coast.

Enhance Your Shed's Electrical System: Key Considerations for Cable Runs

The primary focus of any shed wiring project lies in successfully transmitting power from your main switchboard to the shed itself. On larger properties, this distance can stretch to 30, 50, or even over 100 metres. The longer the distance, the wider the cable diameter becomes necessary to effectively manage voltage drop. Understanding this concept is critical for ensuring your shed receives an adequate power supply.

When evaluating cable runs, you essentially have two main options available:

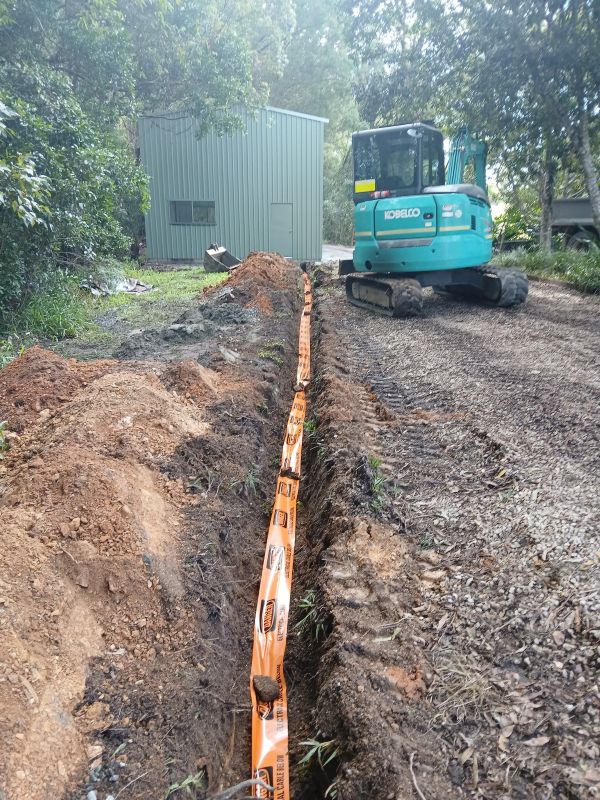

• Underground cable run — This is the most prevalent and aesthetically pleasing option. Your electrician will install robust cables through orange conduit buried at least 500mm deep, or deeper if heavy vehicles frequently traverse the area. This method protects the cable from adverse weather, wildlife interference, and falling branches, making it the preferred choice for most properties with significant land.
• Overhead cable run — Although less common, this alternative may be necessary if solid rock or challenging terrain complicates trenching. Overhead runs must follow proper clearance heights and require support poles, which can significantly increase overall costs.

For the majority of properties in and around Bellingen, Coffs Harbour, and the Mid North Coast, an underground cable run is the recommended approach. Your electrician in Bellingen can evaluate your site and suggest the most effective route for the installation process.

Establishing a Robust Power Supply for Your Shed: The Necessity of a Dedicated Sub-Board

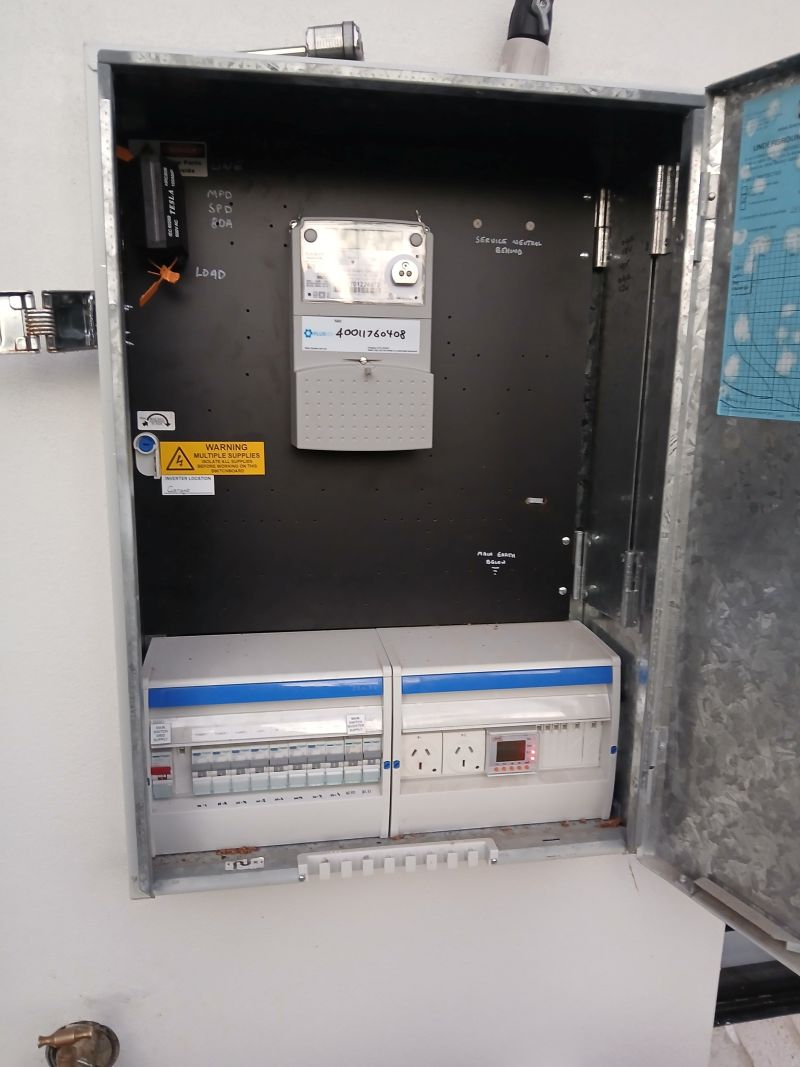

Merely running a single cable to the shed and plugging in appliances is insufficient. Any shed that receives a proper power supply must incorporate a dedicated sub-board, commonly known as a distribution board. This functions as a mini switchboard located within the shed, providing effective management for all circuits.

Your sub-board typically includes the following essential components:

• Main switch — This feature allows you to independently isolate all power to the shed, separate from the main house.
• RCDs (Residual Current Devices) — Mandated by NSW electrical regulations, these devices ensure rapid power cut-off in milliseconds in the event of a fault, which is vital for safety in a shed environment where moisture, dust, and damaged leads are prevalent.
• Circuit breakers — These components offer individual protection for each circuit within the shed, covering lighting, general power, and dedicated tool circuits.

If your home’s switchboard is older, your electrician may also recommend an upgrade to accommodate the additional load directed to the shed, ensuring safety and efficiency.

What Essential Features Should You Install Inside Your Shed for Maximum Functionality?

The specific installations your electrician performs within the shed will depend entirely on its intended purpose. Below is an overview of typical setups that can enhance your shed's functionality.

Creating an Efficient Basic Storage Shed Setup

If your shed primarily functions as a storage space for tools, a ride-on mower, or other equipment, consider implementing the following setup:

• LED batten lights — One or two ceiling-mounted LED batten lights will efficiently illuminate the entire area. Your electrician can advise on the best lighting arrangement tailored to the shed's dimensions and layout for optimal brightness.
• Two to four general power points — These will be sufficient for plugging in a charger, a radio, or a drop saw when required. Expect standard power points and switches to be connected on a single circuit for convenience.
• External light — A weatherproof LED light positioned above the door will ensure visibility, helping you avoid fumbling around in the dark when entering or exiting the shed.

Configuring a Fully Equipped Powered Workshop Shed for Heavy-Duty Use

If you regularly utilise power tools such as drop saws, bench grinders, and dust extractors, a more advanced wiring configuration becomes essential:

• Multiple circuits — Having separate circuits for lighting, general power, and dedicated tool outlets will prevent annoying flickering lights whenever a tool is activated, ensuring a stable power supply.
• Higher-rated power points — Installing 15-amp or 20-amp outlets is crucial for accommodating heavier tools that require more power to operate effectively.

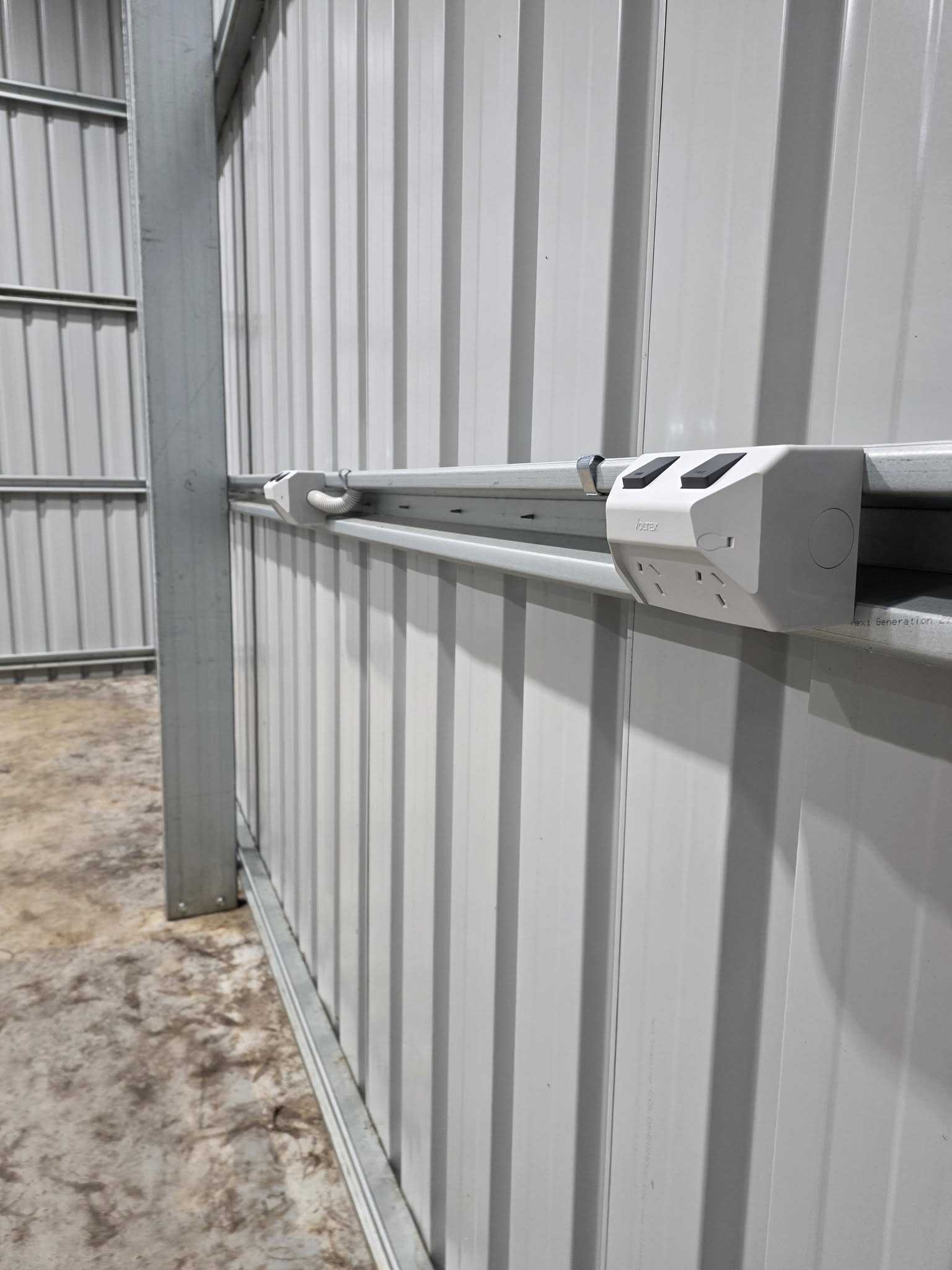

• Strategically placed additional power points — It is advisable to install outlets at bench height rather than solely at skirting level, taking into account the actual positions of your workbenches for convenience.
• Dedicated lighting — Ensure brighter, more focused lighting is installed directly over work areas, potentially utilising LED high-bays for larger sheds to enhance visibility and efficiency.

For comprehensive guidance on configuring dedicated circuits for heavy tools, please refer to our article, Powering a Rural Workshop — Dedicated Circuits for Heavy Tools and Equipment for further information and insights.

Establishing a Comprehensive Workshop With a Three-Phase Power Supply System

If you intend to operate heavy-duty machinery, such as large compressors, lathes, MIG welders, or commercial-grade equipment, a single-phase power supply may not suffice. In such scenarios, it is advisable to consider a three-phase power system for optimal performance.

Three-phase power delivers more consistent and higher-capacity energy. Your electrician will need to:

• Arrange for a three-phase supply from your energy distributor, which may take several weeks on the Mid North Coast depending on demand and availability.
• Install a three-phase sub-board in the shed, equipped with suitable breakers and RCDs for safety and efficiency.
• Run heavier cabling — Keep in mind that three-phase cable runs are typically more expensive, particularly over longer distances, due to the materials and installation requirements.
• Install three-phase outlets — These industrial-grade sockets must be rated appropriately for the equipment being utilised to ensure safe operation.

If you are uncertain whether three-phase power is necessary for your requirements, check out our article, Do I Need Three-Phase Power on My Property? This resource elaborates on the benefits of three-phase power versus a well-designed single-phase setup and includes details on complete installations for three-phase switchboards should you opt for that route.

Why Is Surge Protection Crucial for Your Shed's Safety and Equipment Longevity?

Properties situated on expansive acreage in the Mid North Coast frequently endure severe lightning storms. A direct or nearby strike can inflict extensive damage on everything housed within your shed, jeopardising tools, chargers, refrigerators, and all equipment connected to power sources.

Installing a high-quality surge protection device within the sub-board acts as a cost-effective insurance measure. This device absorbs voltage spikes before they can reach your valuable equipment, thereby safeguarding your investments. For sheds housing expensive tools or a comprehensive workshop setup, surge protection is an absolute necessity to prevent costly damages.

If your property is equipped with a generator for backup power, your electrician can also install a generator changeover switch, allowing the shed (and the house) to switch to generator power safely during outages and ensuring uninterrupted power supply to your essential devices.

What Are the Key Regulations Regarding Council Approval and Compliance in NSW?

There are several critical regulations to be aware of when planning your electrical installations:

• All electrical work in NSW must be executed by a licensed electrician. There are absolutely no exceptions to this rule. While you may dig the trench yourself to reduce labour costs, all electrical tasks—including cabling, connections, sub-board installation, and more—must be conducted by a licensed contractor who will issue a Certificate of Compliance (CCEW) once the work is completed.
• Depth requirements for underground cables must comply with AS/NZS 3000 (the Wiring Rules). Your electrician will handle this aspect of the installation efficiently and ensure it meets all legal standards.
• If the shed is a new construction, development approval may be required depending on your council and the overall dimensions of the shed. While the electrical work itself does not necessitate a separate permit, the overall building project could require one based on local regulations.

Hack-It Electrical Solutions operates under NSW Electrical Contractor Licence #230609C. Every job we complete comes with a compliance certificate to ensure safety and legality, giving our clients peace of mind.

Estimating Costs for Shed Wiring on Acreage: What Should You Anticipate?

Each shed presents unique challenges—factors such as distance from the house, whether you need single-phase or three-phase power, the number of circuits required, and soil conditions for trenching all contribute to the overall costs involved. Here’s a rough guide for the Mid North Coast:

• Basic shed wiring (light + a few power points, short cable run) — Starting from $2,500
• Powered workshop shed with sub-board and multiple circuits — Starting from $4,500
• Full workshop setup with three-phase, dedicated circuits, and surge protection — Starting from $8,000+

Longer cable runs (50m or more), rocky terrain requiring a rock saw, or upgrades for three-phase supply will all contribute to an increase in overall costs. The most reliable method to receive an accurate estimate is to have your electrician conduct a site visit, evaluate the cable route, and understand the intended use of the shed to provide a tailored quote.

For a customised quote tailored to your specific setup, please call us at 0402 079 803 or contact us here.

Addressing Your Most Common Questions About Shed Wiring

Can I Wire My Shed Myself In NSW?

No, all electrical work in NSW must be performed by a licensed electrician. This includes running cables to the shed, installing the sub-board, power points, lighting, and all other related tasks. Attempting DIY electrical work is not only illegal but also poses serious safety hazards. Your electrician will provide a Certificate of Compliance upon the completion of the work, ensuring all regulations are met.

How Deep Should Underground Cable Be Buried?

According to the Australian Wiring Rules (AS/NZS 3000), underground cables encased in conduit must be buried at least 500mm deep under standard conditions. If vehicles are likely to drive over the cable run, the depth must typically be increased to 600mm or more. Your electrician will assess the specifics of your property and determine the appropriate depth for your installation.

Do I Need A Separate Meter For My Shed?

In most situations, no. The sub-board in your shed connects back to your main house switchboard and draws power from the same meter. A separate meter is only required if the shed is utilised as a standalone dwelling or commercial premises, which will necessitate further discussions with your council and energy distributor to ensure compliance.

How Long Does It Take To Wire A Shed On Acreage?

A typical shed wiring project—comprising trenching, cable installation, sub-board setup, lights, and power points—typically takes one to two days to complete once the trench is prepared. If you are digging the trench yourself, your electrician can provide you with the specific route and depth prior to commencing work. Three-phase installations often require additional time, as the supply connection must first be arranged with the distributor.

Can I Run Power From The Shed To Other Buildings?

Yes, it is feasible, but each additional building will require its own appropriately rated cable run and may need its own sub-board based on the electrical load. Your electrician can design an entire layout across multiple buildings, ensuring that the cabling and switchboard capacity are adequate from the outset, thus avoiding complications associated with subsequent additions.

Ensure Safe and Efficient Wiring for Your Shed with Professional Help

If you reside on acreage around Bellingen, Coffs Harbour, Sawtell, Boambee, or anywhere on the Mid North Coast, Hack-It Electrical Solutions is here to ensure your shed is wired appropriately—whether it’s a straightforward light-and-power setup or an extensive three-phase workshop installation.

Contact us at 0402 079 803 or reach out via our website to schedule a site visit. We will assess your property, identify the most suitable cable route, and provide you with a clear, comprehensive quote tailored to your needs.
