Solar Switchboard Upgrade for Chelmer’s Battery & Air Con

Project Location: Chelmer
Project Scope: Switchboard enhancement
Result: Comprehensive single-phase switchboard upgrade supporting a 17.86kW solar installation, 30kWh battery storage, and ducted air conditioning—no three-phase upgrade was warranted.

Select Precision Electrical & Air for Your Essential Switchboard Upgrade

This homeowner in Chelmer embarked on a significant renovation project that encompassed the installation of a robust 17.86kW single-phase solar photovoltaic (PV) system, complemented by a 30kWh modular battery storage solution and comprehensive blackout protection for the residence. Moreover, a state-of-the-art ducted air conditioning system was integrated into the project. Prior to connecting these advanced systems, it was imperative to evaluate and upgrade the existing switchboard to ensure adherence to current standards, while effectively managing the increased electrical loads that these installations would create.

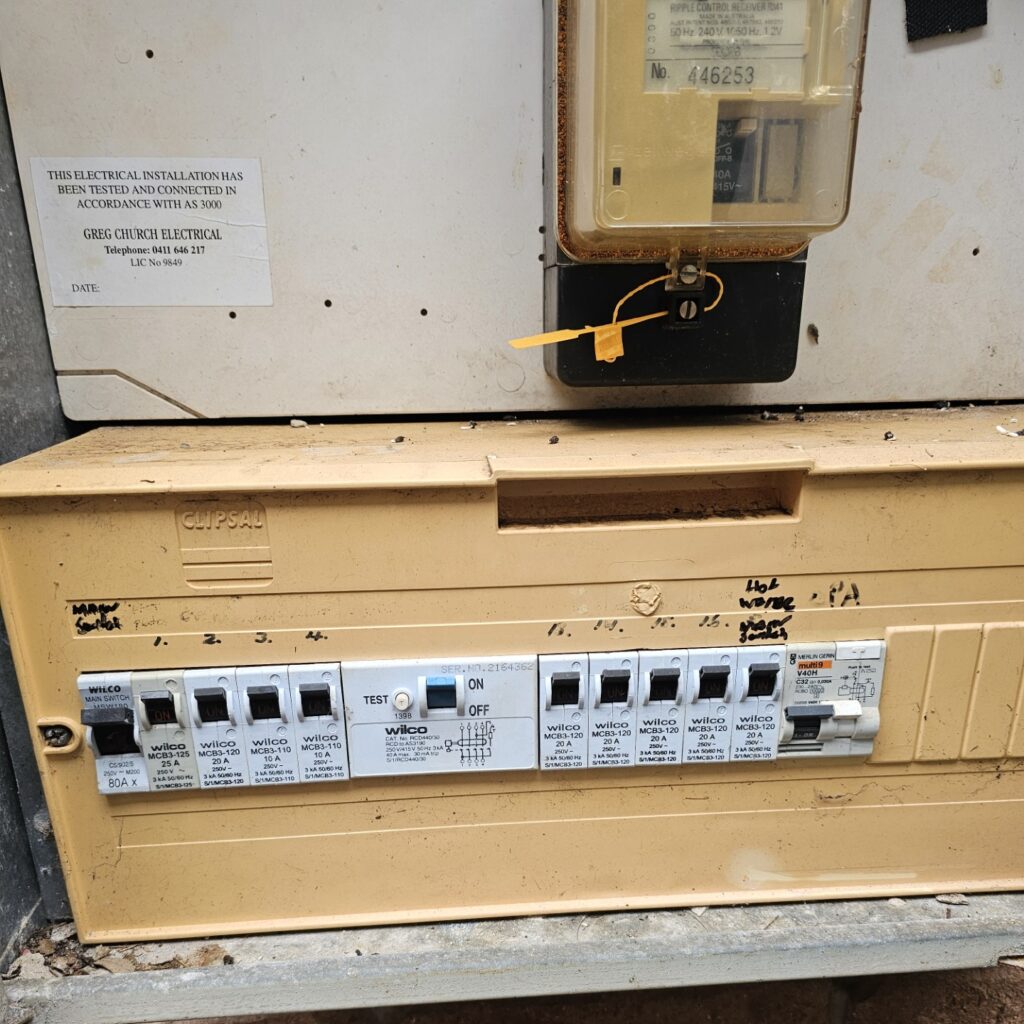

The original switchboard was outdated, featuring obsolete circuit breakers, a solitary Residual Current Device (RCD) that offered protection for the entire property, and lacked the capability to integrate solar energy and battery storage solutions. Furthermore, the circuit labelling was inadequate, rendering it non-compliant with contemporary standards that govern modern energy generation systems. This deficiency in compliance posed a significant risk to the efficient operation of the newly upgraded systems.

Is a Three-Phase Upgrade Truly Necessary for Your Electrical System?

When considering the specifications of a 17.86kW solar system combined with a 30kWh battery, it is a prevalent misconception that a three-phase upgrade is essential. This misunderstanding can lead to significant financial implications for the homeowner, potentially incurring costs between £3,500 and £6,000, alongside extended waiting periods for approval from Energex for any required network modifications.

Thorough Technical Evaluation Conducted to Determine Upgrade Needs

Two critical factors played a pivotal role in deciding whether a three-phase upgrade was necessary. Firstly, the supply cable for the residence was strategically positioned near the street junction. This advantageous location allowed for the voltage rise calculation related to solar energy export to comfortably remain within Energex's single-phase limit of 2%. Secondly, since the solar and battery systems are engineered to reduce demand on the grid rather than increase it, there was no technical basis from the network's viewpoint necessitating a three-phase upgrade. Additionally, the ducted air conditioning system was confirmed to be compliant with the essential parameters for effective single-phase operation.

Consequently, the decision was made to retain the single-phase configuration. The switchboard was subsequently upgraded to ensure it could safely and competently accommodate all new electrical loads without compromising safety or compliance with current standards.

Comprehensive Analysis of Installed Components for Enhanced Safety and Compliance

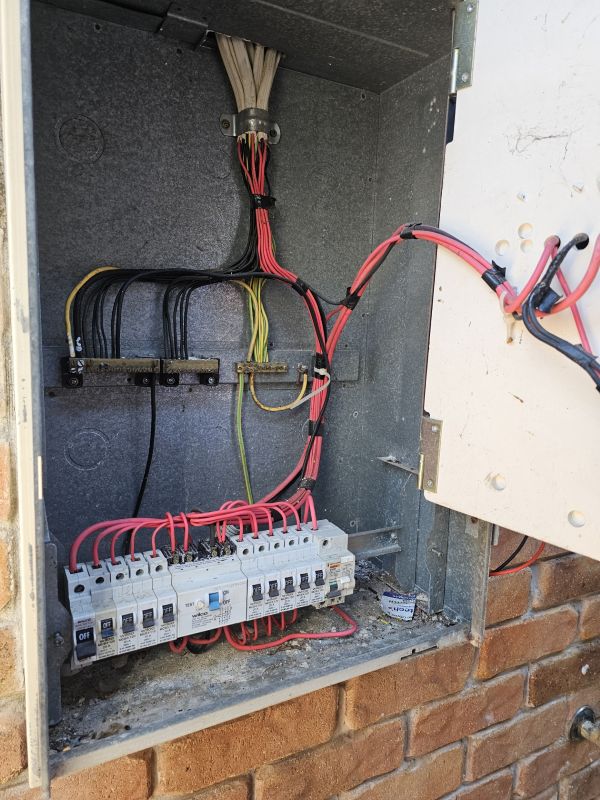

The existing switchboard underwent a complete dismantling and an extensive reconfiguration process. Every circuit breaker was replaced with new, appropriately rated units from Eaton, and each was meticulously labelled for straightforward identification. The circuits were carefully segregated; power, lighting, hot plates, ovens, split system air conditioning, and ducted air conditioning were all provided with dedicated circuits to enhance safety and ensure compliance with contemporary regulations.

A timer was incorporated into the hot water service to ensure it operates efficiently during peak solar generation hours. This strategic addition significantly reduces dependence on the grid by optimising the use of the solar system's output throughout the day. Furthermore, a dedicated Hot Water Service (HWS) contactor circuit was installed to guarantee proper functionality and performance.

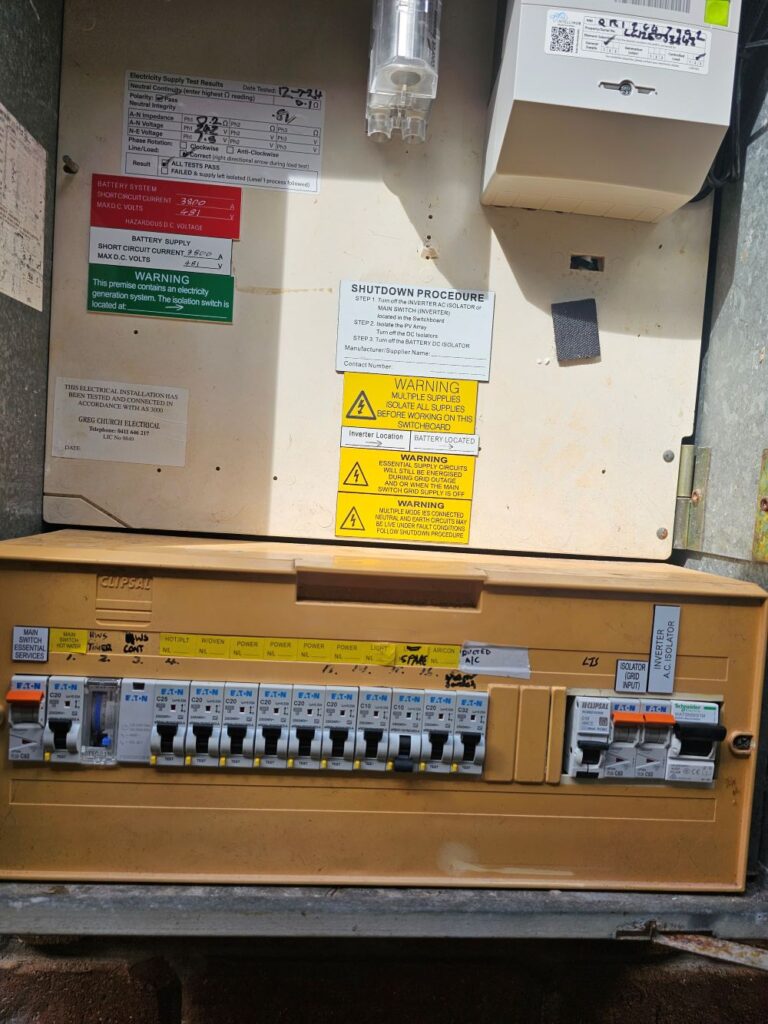

The upgraded switchboard was meticulously designed for seamless integration with both the solar inverter and battery system. This included the installation of an AC isolator, a dedicated grid isolator, and comprehensive safety labelling that clearly stated the battery system rating at 481V DC with a short-circuit current of 3800A, alongside multiple supply warnings and a comprehensive shutdown procedure. All electricity supply tests were conducted, successfully passing and documented for the switchboard to ensure reliability.

The finished switchboard now fully complies with the latest Australian standards, guaranteeing it is appropriately set up for any future electrical service work required at the property.

Homeowner Enjoys Benefits from Successful Switchboard Upgrade

The homeowner has successfully acquired a fully upgraded and compliant switchboard that can reliably support their solar system, 30kWh battery, and ducted air conditioning, all operating efficiently within a single-phase configuration. Most importantly, they avoided unnecessary expenses associated with a three-phase upgrade that was not crucial for their specific circumstances.

Have You Received a Quote for a Three-Phase Upgrade and Unsure About Its Necessity?

While three-phase upgrades can be vital in certain situations, they are not universally required. If you have received a substantial quote for a switchboard upgrade and are uncertain about its relevance to your specific scenario, allow Precision Electrical & Air to conduct a comprehensive analysis. We will provide you with a clear and accurate assessment based on your cable distance, load requirements, and the actual criteria that Energex will utilise to approve your property.

We guarantee no upselling occurs; you will receive an accurate answer tailored specifically to your home and its needs.
